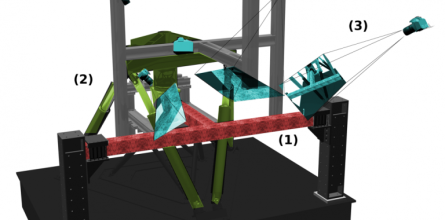

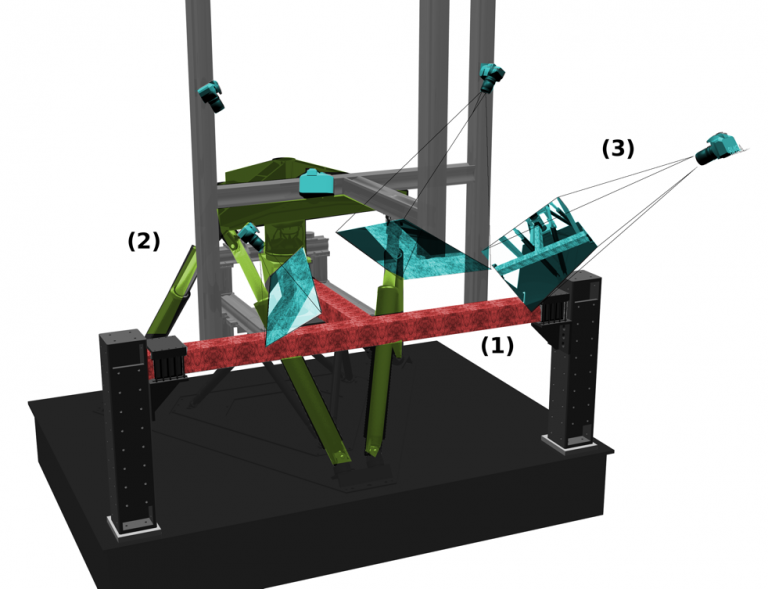

Virtual test set-up

Hardware connection

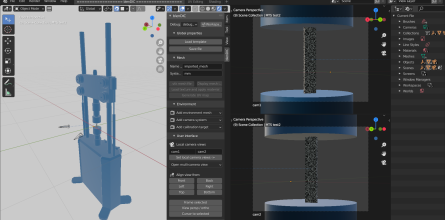

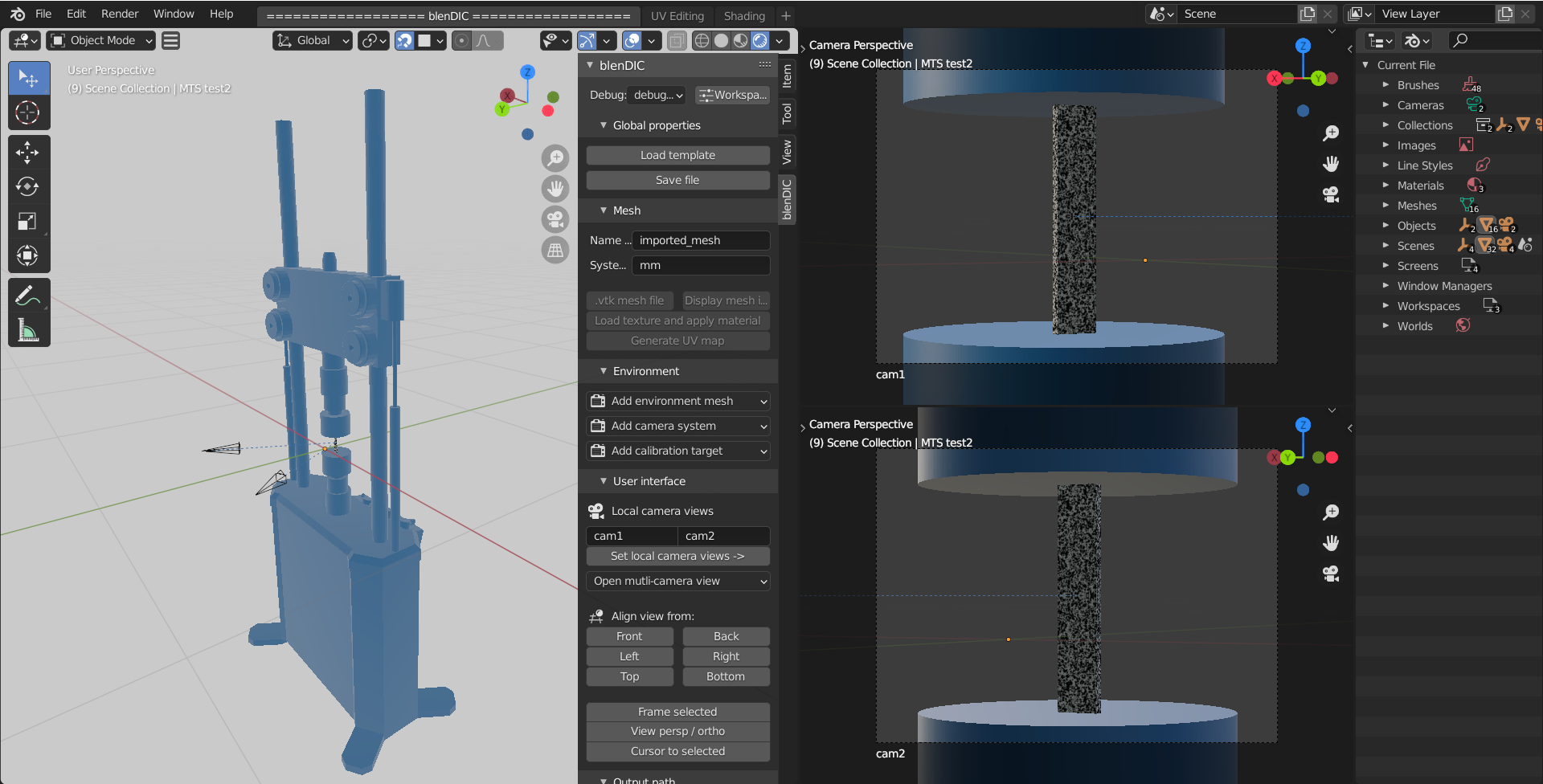

Model-based image


Reality-inspired simulations


EikoTwin Virtual

EikoTwin Virtual allows you to anticipate experimental difficulties by preparing completely virtual DIC tests and test case specification.

The use of DIC on complex structures is often limited by the use of cameras in geometrically complex environments. Based on the open-source software Blender, EikoTwin Virtual allows us to prevent these problems and estimate future measurement errors.


The use of virtual DIC scenes widely improves the chances of making the right choices via test procedure specification before the test.

Eikotwin Virtual Test Specification With Eikosim

EikoSim's engineering partners and customers

Ansys 1
DS 1
Mdba 1
Arienegroup 1
Safran 1

Principle: Test Case Specification

  • Creation of a complete test scene from the meshes of the structure and its environment.
  • Realistic adjustment of lighting and textures.
  • Export of realistic images and test layout plans.

Test Specification Features

  • Conversion of the finite element mesh to a dedicated format.
  • Import of native or generic formats.
  • Deformation of structures according to a finite element simulation result to model displacements.

Virtual Test Results

  • Exports series of "distorted" images directly exploitable in image processing.
  • Estimation of the expected errors in displacements and communication with the design office.
